Grating Ruler Linear Scale Encoder 50MM-1000MM 2 Axis 3 Axis Digital Readout for Milling Drilling Grinding Lathe Machine Metal Working for Milling Lathe Machine(250MM Linear Scale)

Product DescriptionDigital Readout & Linear ScaleThis precision linear scale with the DRO display kit includes two precision linear scales with lengths of 250 mm10 and 1000 mm40 Resolution of 5 m 00002 at 20ºC Precision linear scale with digital readout is widely used on milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, video measuring machines, movement control, position monitoring, and coordinate measurement X-Y-Z working table monitor, mechanical control.Combination: 2 Axis Digital Readout & 2501000 mm Linear ScaleAxis 2 AxisDisplay 8 digitsLifespan Five million timesInput Signal TTL square wave EIA442Input Signal Frequency 100KHZResolution 5 m00002" at 20ºCLinear Scale Cable Length: 3 m/10 feet eachKeyboard: Pressure sensitivePackage Content1 x 2 Axis Digital Readout Display Meter1 x 250 mm/10" Linear Scale1 x 1000 mm/40" Linear Scale1 x Guard Plate1 x Mounting Accessory Set1 x Manual3 Axis DRO Digital ReadoutSupply Voltage Range: 85V-220VPower: 10WCurrent: 0.5AWorking Temperature: 0-45°Frequency Doubling: 4XKeyboard: Full ClosedAllowable Input Signal: TTL square waveConnectors: 9PDResolutions: 0.05µm, 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µmWeight: 0.9kg(1.98 lb)Size(LxWxH): 29.5 x 18.5 x 9.5cm/11.61" x 7.28" x 3.74"Package Content1 x 3 Axis Digital Readout2 x Bracket1 x Screw Set2 Axis DRO Digital ReadoutSupply Voltage Range: 85V-220VPower: 10WCurrent: 0.5AWorking Temperature: 0-45°Frequency Doubling: 4xKeyboard: Full ClosedAllowable Input Signal: TTL square waveConnectors: 9PDResolutions:0.05µm, 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µmWeight: 0.9kg(1.98 lb)Size(LxWxH): 29.5 x 18.5 x 9.5cm/11.61" x 7.28" x 3.74&q

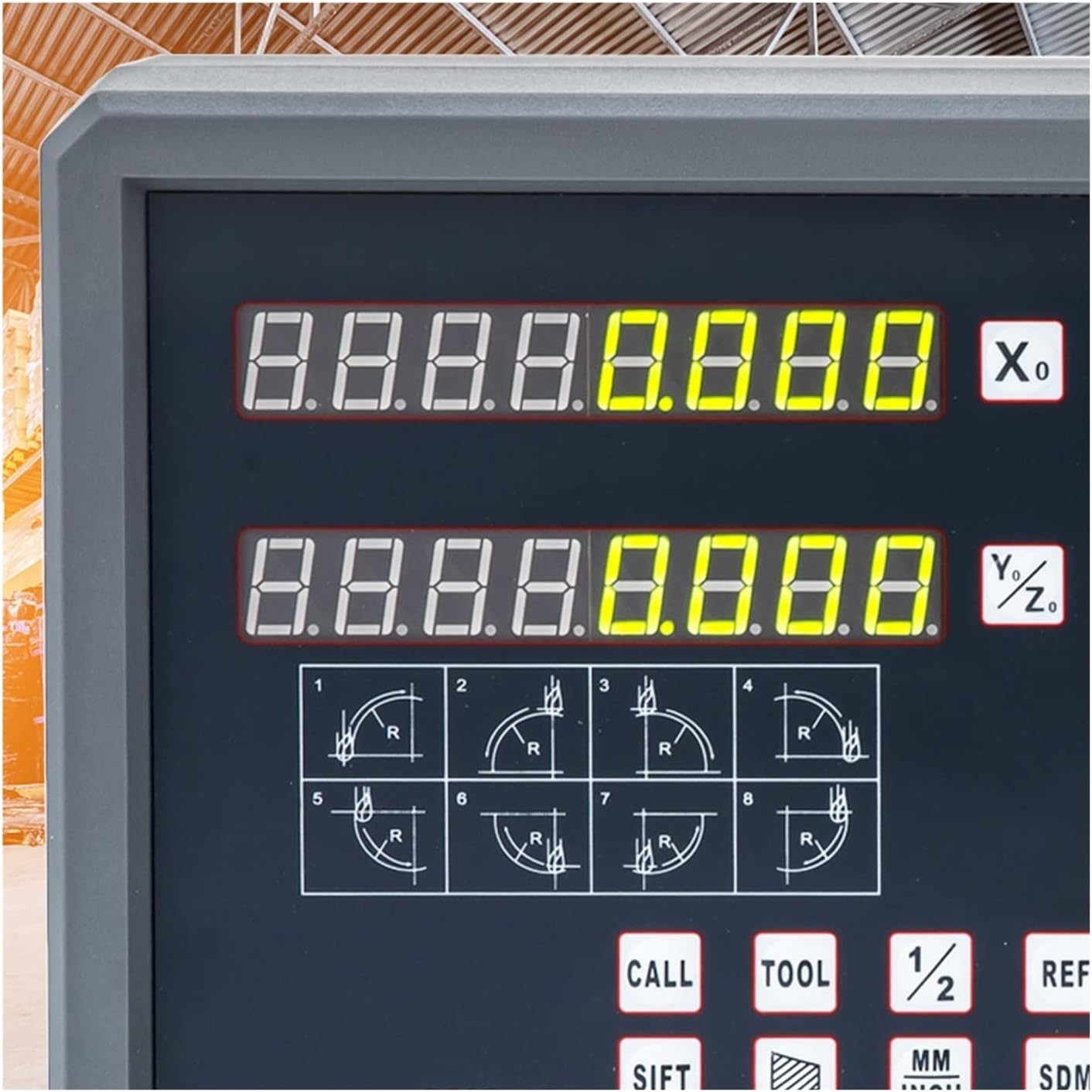

• The linear encoder body adopts highquality plastic for high durability This linear scale applies an aluminum profile scaling body to be more resistant to oxidation Besides the dro for lathe features an 8 bit LED highdefinition nixie tube for a relatively natural display effect
• INTELLIGENT FUNCTIONS The lathe readout is equipped with a variety of intelligent functions SDM 200 sets memory bevel processing, power-off memory, 1/2 centering, circumference drilling, oblique line drilling, ABS/INC mode selectable, R/D function, etc.
• BRACKETS & SCREW SET INCLUDED Individualized components are included in the digital readout mill package for easy installation and operation The lathe linear scale has slotted end blocks that are more convenient for users to mount operate and maintain easily
• STANDARD SIGNAL CABLE This high accuracy linear scale is equipped with a 3 m signal cable The signal cable is protected by multilayer shielded wire steel and a soft metal shell It has excellent waterproof and antiinterference performance
• EXTENSIVE USE- Precision linear scale with digital readout is applicable for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope. You can use it to achieve movement control, position monitoring, coordinate measurement, etc.
